Squid KANOKO Machine
Cuttle Fish KANOKO Machine
Squid Nicking Machine

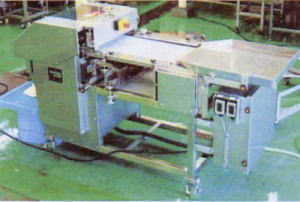

Squid Meat Nicker Model: 400W
Click for squid processing Movie Part 2

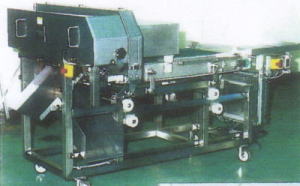

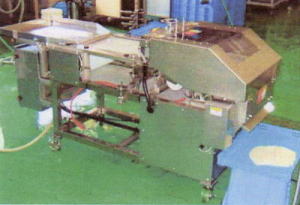

View from input side View from output side
Specifications of Model: 400W
Electric consumption 3Phase, 200V, 0.2kW for Cutter
3Phase, 200V, 0.2kW for Conveyor
3Phase, 200V, 0.04kW for Scraper
Machinery Dimensions (L)1972mm x (W)830mm x (H)1115mm
Machinery Weight Approx. 200kg
Effective Conveyor Width 400mm
Cutting unit 80 pcs. of diameter 100mm x thickness 0.5mm
Squid Flower Tube After Cutting Squid Flower Tube After Boiled

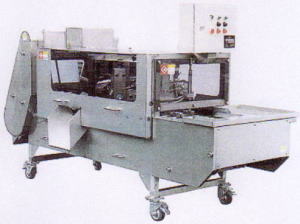

Arrow Squid Pre-cutting & Gutting Machine Model: ST-951
Click for the squid processing mmovie Part 1
Specificatins of ST-951
Machinery Dimensions (L)2,980mm x (W)1,170mm x (H)1,770mm
Production Capacity 3,000pcs. - 3,600pcs./hr.
Electric Consumption 3Phase, 200V, 0.96kW
Machinery net Weight 870kg

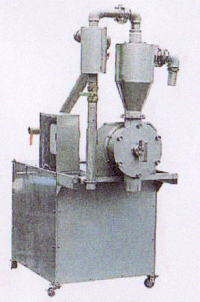

Optional Vacuum Machine for ST-951
Machinery Specificasions:

Machinery Dimensions
(L)1,350mm x (W)800mm x (H)2,000mm

Electric Consumption
3Phase, 200V, 7.7kW

Machinery Net Weight
360kg
* Pre-cut Machine for slicing cut the thickness of Bigger (Giant) Squid into slicing
Machinery Specifications;

Conveyor speed: 11.7m/min.
Electric consumption: 0.6kW
Machinery Dimensions: (L)2280x(W)1430x(H)1270mm
* High Speed Guillotine Cutter for Squid KANOKO into Cube
