| 1. Application |
| Alaska pollack with Roe (male and female can be processed) |
| Fish length |
350mm - 550mm |
| Group 1 |
350mm - 450mm |
| Group 2 |
400mm - 550mm |

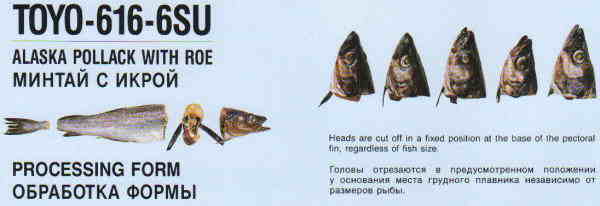

| 2, Processing Shape |
(1) Head cut (cutting position can be adjustable) |

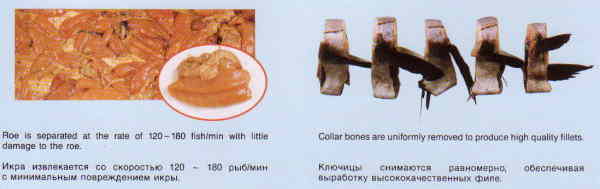

| (2) Removal of Roe and Guts (Liver and Milts) |
| Cut Roe Ratio: Approx. 15% - 20% on an average |
| Roe collecting ratio: 80% - 90% Max. |
| 3, Processing Capacity |
120pcs,/min. - 180 pcs. of fish/min.(Maximum) |

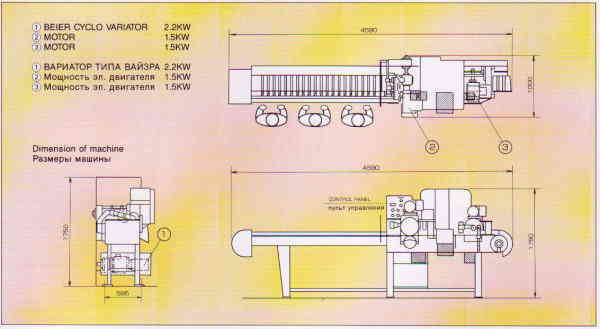

| 4. Electric Consumption |
(1) Geier Cycle Variator: |
3 Phase 2.2kW |
| (2) Motor 1 |
3 Phase 1.5kW |
| (3) Motor 2 |
3 Phase 1.5kW |
| 5. Water Consumption |
Max. 20 liters/min. |
| 6. Net Weight |
1,800kg |
| 7. Material |
Frame |
Stainless Steel |
| Pocket |
| Rotary Cutter |
| Caudal Grip Unit |
| Knife Driving Unit |
Bronze Casting |
| Pully and Sprokets are made of iron and coated with zinc metarication |
| 8. Number of Operators |
One - Three operators |
 |
